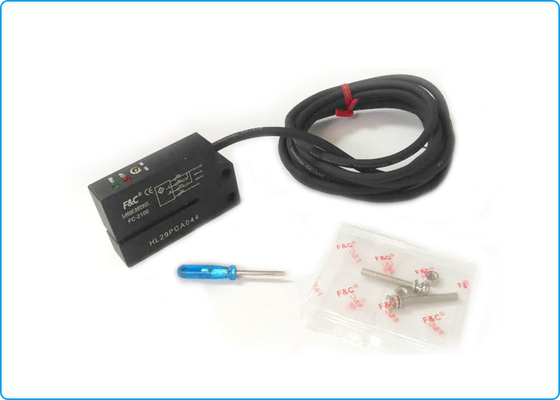

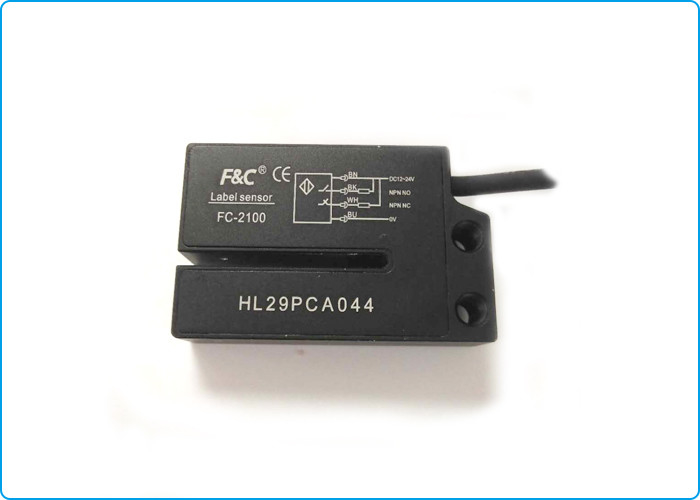

PNP NPN Electric Label Sensor Infrared Light Source for Sticker Label in Package Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | F&C |
| Certification: | CE RoHS |
| Model Number: | FC-2100P |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1Pcs |
|---|---|
| Price: | 25-40 |
| Packaging Details: | 1Pcs in a white box |
| Payment Terms: | T/T, D/P, D/A, Western Union, MoneyGram |
| Supply Ability: | 1000 Pcs Per Month |
|
Detail Information |
|||
| Model: | FC-2100P | Output Method: | NPN NO.NC Or PNP NO NC |
|---|---|---|---|
| Detection Distance: | 2mm | Operating Temperature: | -10℃-50℃ |
| Protection Class: | IP66 | Operating Voltage: | 12-24V VDC |
| Application: | Label Machine | ||
| Highlight: | ultrasonic label sensor,label counter sensor |
||
Product Description
PNP NPN Electric Label Sensor Infrared Light Source for Sticker Label in Package Machine
Features
1. Specially Design for label detection.
2. All-metal case design, high reliability and compatibility.
3. IP66 Water-proof .
4. Standard 2m pre-wired cable.
5. OEM order accepted, 18 months warranty.
| Model | FC-2100P |
| Output type | PNP NO+NC or NPN NO+NC |
| Detection distance | 2mm |
| Light source | 940nm infrared modulated light |
| Operating voltage | DC12-24V±10% |
| Protection circuit | Reverse polarity protection and short circuit protection |
| Response time | <500us |
| Leakage current | <0.01mA no-load |
| Operating temperature | -10℃-+50℃(without icing or condensation) |
| Storage temperarure | -20℃~+60℃(No freezing ) |
| Ambient humidity | 35%-85% RH |
| Protection degree | IP66 |
| Meterial | Aluminium metal sheet |
| Wiring method | M8 Connector |
