M8 Connector 12VDC PNP Type Fork Optical Label Sensor With Potentionmeter

China M8 Connector 12VDC PNP Type Fork Optical Label Sensor With Potentionmeter supplier
M8 Connector 12VDC PNP Type Fork Optical Label Sensor With Potentionmeter supplier M8 Connector 12VDC PNP Type Fork Optical Label Sensor With Potentionmeter supplier

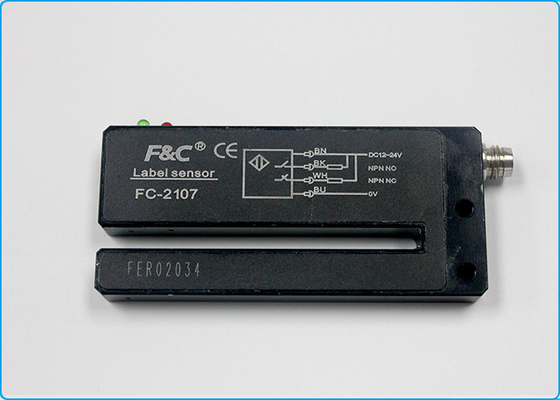

Large Image :  M8 Connector 12VDC PNP Type Fork Optical Label Sensor With Potentionmeter

Product Details:

Place of Origin: China
Brand Name: F&C
Certification: CE,Rohs
Model Number: FC-2107P/D

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: single box package
Delivery Time: 7-10days
Payment Terms: TT, paypal, Western Union
Supply Ability: 50pcs per week
Contact Now
Detailed Product Description
Power Supply: 12-24V DC Output Type: PNP NO. NC
Accuracy: 0.5mm Slot Width: 5mm
Application: Universal Label Usage Theory: Optical Label Sensor
Load Current: 100mA At 24VDC Housing: Aluminum Metal Case

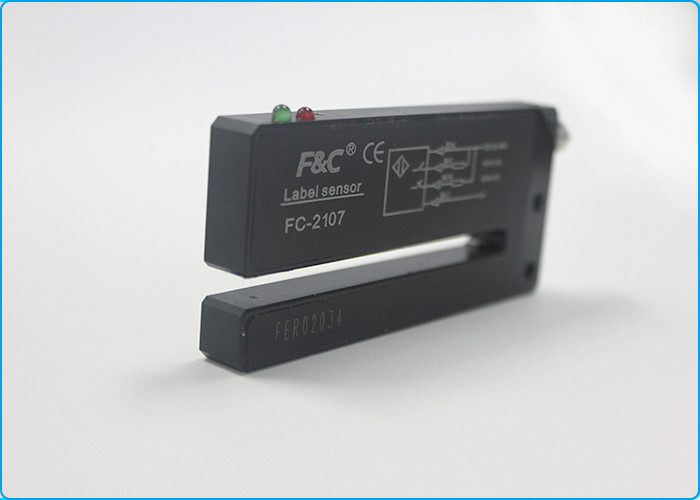

M8 Connector 12VDC PNP Type Fork Optical Label Sensor With Potentionmeter

Optical Label sensor used for most common sticker label and not suitable for clear label sensing, it is very popular in market with competitive price.



M8 Connector 12VDC PNP Type Fork Optical Label Sensor With Potentionmeter



Specifications for Adhesive Optical Label sensor:




Model FC-2107P/D
Output type PNP NO NC
Detection distance 5mm
Light source 940nm infrared modulated light
Operating voltage DC12-24V±10%
Current consumption 15mA Max
Load current 100mA Max at DC ;24V
Protection circuit Reverse polarity protection and short circuit protection
Response time 500us Max
Leakage current <0.01mA no-load
Operating temperature -10℃-+50℃(without icing or condensation)
Storage temperarure -20℃~+60℃(No freezing )
Ambient humidity 35%-85% RH
Protection degree IP66
Meterial Aluminium metal sheet
Wiring method φ4mm×2M/4-wires/φ4mm×2M/M8 4-wires





Applications

M8 Connector 12VDC PNP Type Fork Optical Label Sensor With Potentionmeter

M8 Connector 12VDC PNP Type Fork Optical Label Sensor With Potentionmeter

M8 Connector 12VDC PNP Type Fork Optical Label Sensor With Potentionmeter



Video or more details, welcome to inquiry us.
