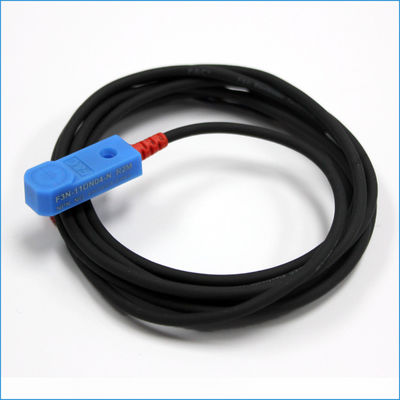

DC Top Induction Inductive Type Sensor 3 wire 4mm Metal Detector
Product Details:
| Place of Origin: | China |
| Brand Name: | F&C |
| Certification: | CE, RoHS |
| Model Number: | F3N-11DN04-N R2M |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable |
| Packaging Details: | Standard export Package |
| Supply Ability: | 10000Pcs Per Month |
|
Detail Information |
|||
| Output Method: | NPN NO | Detection Distance: | 4mm |
|---|---|---|---|
| Operating Voltage: | 12~24VDC | Standard Detection Object: | 8*8*1(Iron) |
| Response Frequency: | 600HZ | Operating Temperature: | -25~70℃ |
| Waterproof Grade: | IP67 | Material: | ABS |
| High Light: | inductive prox switch,inductive proximity switch |
||
Product Description
DC Top Induction Inductive Type Sensor 3 wire 4mm Metal Detector
DC Top Induction Inductive Type Sensor 3 wire 4mm Metal Detector
Specifications for metal detector sensor:
| Small square proximity switch | |
| Induction Direction | Model |
| Front induction | F3N-11TNO4-N R2M F3N-11TNO4-N2 R2M F3N-11TNO4-P R2M F3N-11TNO4-P2 R2M F3N-11TNO4-B R2M F3N-11TNO4-B2 R2M |
| Above induction | F3N-11DNO4-N R2M F3N-11DNO4-N2 R2M F3N-11DNO4-P R2M F3N-11DNO4-P2 R2M F3N-11DNO4-B R2M F3N-11DNO4-B2 R2M |
| Detection distance | 4mm |
| Recommand distance | 3.2mm |
| Standard sensing object | 10*10*1(iron) |
| Response frequency | 600Hz |
| Hysteresis | no more than 10% Detection distance |
| Operating voltage | 12-24VDC 10%/(customize 5V) |
| Current consumption | less than 10mA |
| Load current | 24V 100mA Max |
| Leakage current | less than 0.01mA No-load |
| Residual voltage | less than 1.0VDC |
| Operating Temperature | -25 TO +70 |
| Waterproof degree | IP67 |
| Material | ABS |
| Wiring method | φ2.8×2M/3-wires φ3×2M/3-wires φ3×2M/2-wires |
Features and advantages for metal detector sensor:
1. Easy to install with limited space.
2. Many models for choice like top sensing, front sensing.
3. High quality usage to resistant oil, water,dust.
4. OEM order accepted.
