Opaque Objects Detection Photoelectric Switch for Linear Modules
Product Details:
| Place of Origin: | China |
| Brand Name: | F&C |
| Certification: | CE, ROHS, ISO |
| Model Number: | FC-SPX306P |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable |
| Packaging Details: | Standard Export Package |
| Delivery Time: | 10days after depsite |
| Supply Ability: | 50000pcs per month |
|
Detail Information |
|||
| Voltage: | 5V-24VDC | Detection Distance: | 5mm |
|---|---|---|---|
| Output Method: | PNP NO.NC | Response Time: | 0.3ms Max |
| Operation Temp.: | -10 To 60℃(No Condensation) | Protection Grade: | IP66 |
| Circuit Protection: | Short-Ciruit Protection | Free Sample: | Yes |
| Highlight: | slotted opto switch,slotted opto sensor |
||
Product Description

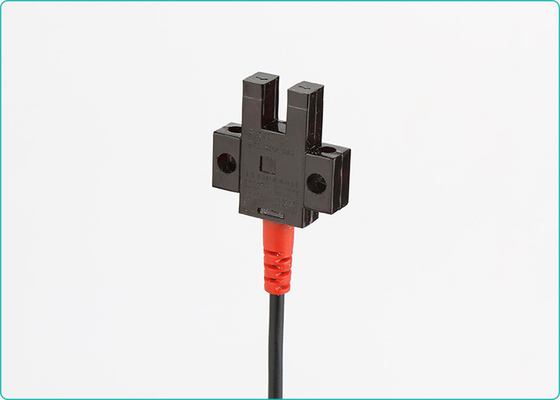

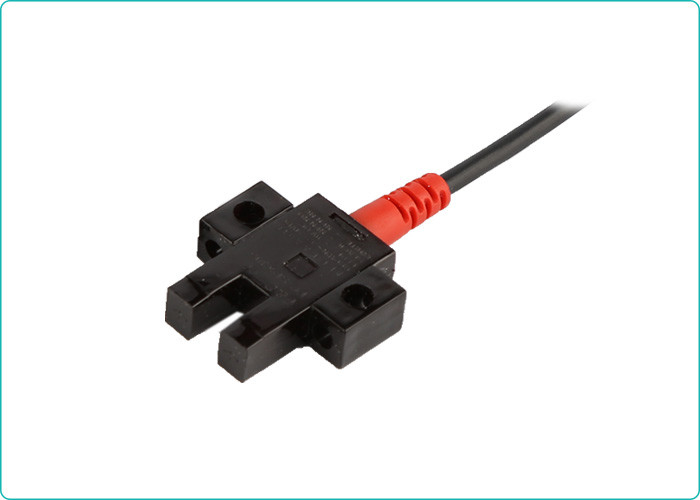

Opaque Objects Detection Photoelectric Switch for Linear Modules
The SPX series Slotted Optical Sensor is designed with 5mm Slot width. they are very popular with the application of linear Slide modules. now you can get Free samples for test and 3 years warranty if interested to them.
Advantages
1. Easy to install with mall volume, almost a half than others.
2. Four wires outputting, every sensor come with function of NO and NC.
3. Many other mini-type for choice.
4. LED indicator to shows working situation.
5. Stable working without influence by other light.
6. Every single products in individual package.
7. Standard 2m cable length, can customize to other cable length.
| NPN NO.NC | FC-SPX302 | FC-SPX303 | FC-SPX304 | FC-SPX305 | FC-SPX306 | FC-SPX307 |
| PNP NO.NC | FC-SPX302P | FC-SPX303P | FC-SPX304P | FC-SPX305P | FC-SPX306P | FC-SPX307P |
| Standard Detection Object | diameter 1mm opaque objects | |||||
| Repeat accuracy | 0.02mm | |||||
| Detection Distance | 5mm | |||||
| Light Source | 940 nm Infrared modulated light | |||||
| Operating Voltage | 5V-24VDC | |||||
| Response Time | 0.3ms Max. | |||||
| Current Consumption | 15mA Max. | |||||
| Load current | 100mA Max at 24 VDC | |||||
| Insulation Resistance | 20M Ohm Min. at 500 VDC | |||||
| Dielectric strength | 60 seconds at 1000VAC 60HZ | |||||
| Protection Degree | IP64 | |||||
| Operating Temperature | -10℃-50℃(No Icing) | |||||
| Reverse Polarity Protection | Yes | |||||
| Short Circuit Protection | Yes | |||||
| Material | ABS | |||||
| Wire Method | Prewired diameter 3mm*2M/- 4wires | |||||
