NPN NO M18 Cylindrical Photoelectric Beam Detector Through Beam Optical Switches
Product Details:
| Place of Origin: | China |
| Brand Name: | F&C |
| Certification: | CE, ROHS, ISO |
| Model Number: | DR18TI-S500N R2M |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable |
| Packaging Details: | Standard export Package |
| Delivery Time: | 7-10days |
| Payment Terms: | L/C, T/T, Paypal |
| Supply Ability: | 5000pcs per month |
|
Detail Information |
|||
| Power Voltage: | 12-24VDC ±10% | Light Source: | 850nm Infrared Light |
|---|---|---|---|
| Sensing Range: | 5m | Mount Design: | NPN NO |
| Operation Temp: | -10°C-+50°C | Protection Class: | IP66 |
| Highlight: | photoelectric proximity switch,high temperature photoelectric sensor |
||
Product Description
NPN NO M18 Cylindrical Photoelectric Beam Detector Through Beam Optical Switches
Advantages
1. Fast delivery, usually 7 days s shipping.
2. Integrated structure with 360 view indicator.
3. Diffuse reflective, retro-reflection and through beam reflection 3 types available.
4. Red protected tail tube, long lifetime.

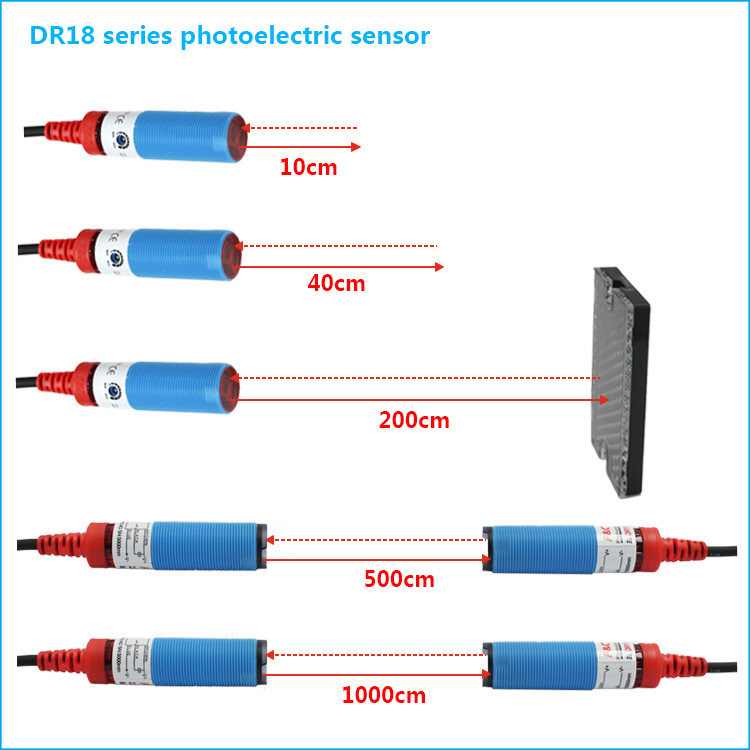

DR18 series model (NPN type also no problem)
| Model | Output design | Sensing Distance |
| DR18RI-S10P R2M | PNP NO | 100mm |
| DR18RI-S10PC R2M | PNP NO NC | 100mm |
| DR18RI-S40P R2M | PNP NO | 400mm |
| DR18RI-S40PC R2M | PNP NO NC | 400mm |
| DR18MR-S200P R2M | PNP NO | 2m |
| DR18MR-S200PC R2M | PNP NO NC | 2m |
| DR18TI-S500P R2M | PNP NO | 5m |
| DR18TI-S500PC R2M | PNP NO NC | 5m |
| DR18TI-S1000P R2M | PNP NO | 10m |
| DR18TI-S1000PC R2M | PNP NO NC | 10m |

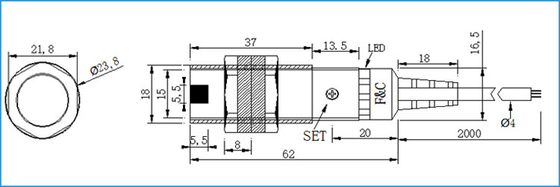

Dimensions
Applications:
Video or more details needed, welcome to inquiry us.
