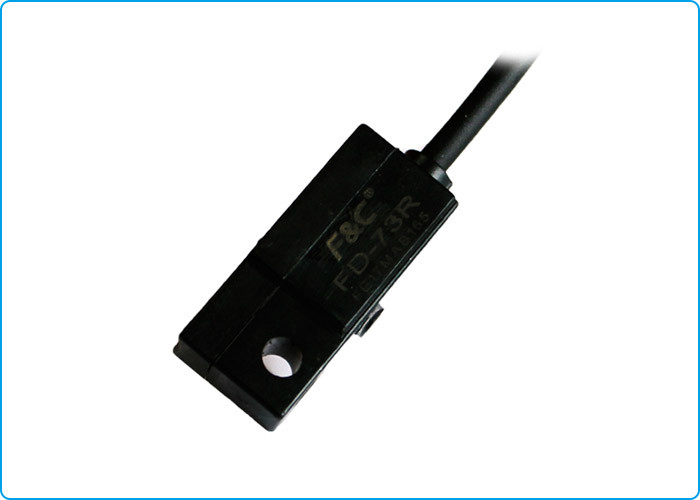

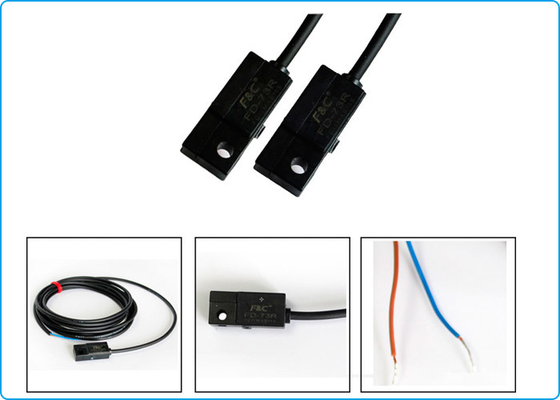

FD-73R Grey PVC Pneumatic Cylinders Reed Switch Electric Magnetic Sensor 2 wire
Product Details:
| Place of Origin: | China |
| Brand Name: | F&C |
| Certification: | CE RoHS |
| Model Number: | FD-73R |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable |
| Packaging Details: | Standard Export Package |
| Delivery Time: | 10days after deposit |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 10000Pcs Per Month |
|
Detail Information |
|||
| Switch Type: | Normal Open | Operating Voltage: | 12-24VDC |
|---|---|---|---|
| Frequency: | 1000HZ | Indicator: | Red Indicator |
| Waterproof Grade: | IP67 | Operating Temperature: | -10 ~ +70℃ |
| Highlight: | normally open switch,magnetic contact sensor |
||
Product Description
FD-73R Grey PVC Pneumatic Cylinders Reed Switch Electric Magnetic Sensor 2 wire
Model:FD-73R
Switch : Normally open
Indicator: Red LED
Maximum frequency: 1000Hz
Maximum current: 100mA MAX
Maximum contact capacity: 3.5W MAX
Cable: diameter 2.8mm,2C/ oil resistant gray PVC
Impact resistance: 30G
Protection Circuit: NO
Temperature: -10 to +70 degree
Vibration resistance:9G
Waterproof: IP67
