Product Details:

Place of Origin: China
Brand Name: F&C
Certification: CE, RoHS
Model Number: FF-403V

Payment & Shipping Terms:

Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: Standard Export Package
Delivery Time: 10days after depsite
Payment Terms: L/C, D/A, D/P,
Supply Ability: 100000Pcs Per month
Get Best Price Contact Now

Detail Information

Output Method: NPN NO Or NC Response Time: 100us
Operating Voltage: 12~24VDC+/-10% Working Indicator: Red Led
Digital Display: Yes Operating Temperature: -10~55℃(no Ice Or Drew Condensation)
Certificate: CE RoHS Measuring Range: 200mm(diffuse Type),1200mm(thru-beam)
Highlight:

fiber optic transducer

,

intrinsic fiber optic sensors

Product Description

Analog 0-5V Digital Fiber Optic Sensor Amplifier FF-403V 3-wire Red Light

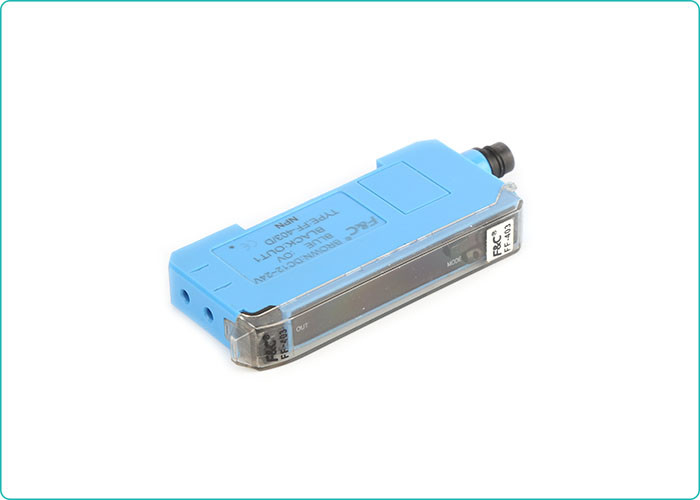

Analog 0-5V Digital Fiber Optic Sensor Amplifier FF-403V 3-wire Red Light 0



FF-403V is a High Speed 12V DC Digital Position Fiber Sensors. it speed can reach 100us . FF-403 is a fiber optic amplifier unit.

It is very suitable for narrow space postion detection when match with optical fibers



3 Years warranty and Free test samples will be support if you are interested in our FF-403V

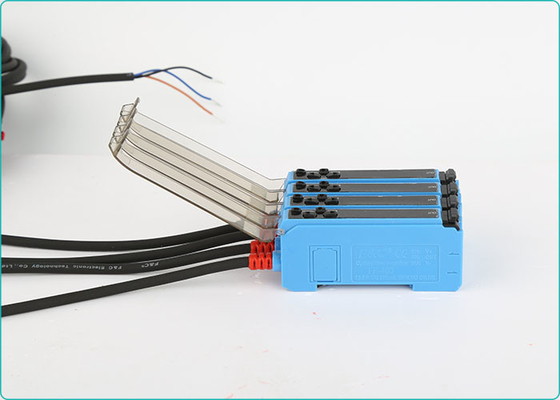

Analog 0-5V Digital Fiber Optic Sensor Amplifier FF-403V 3-wire Red Light 1



Feature

1.One-button setting, easy for operation

2. 4bit &4 bit digital display

3. Press"+" "-" button to restore factory defaults

4. Competitive Price



Light Source Red Light Blue Light Green Light Analog White Light
NPN FF-403 FF-403B FF-403G FF-403V FF-403B
PNP FF-403P FF-403BP FF-403GP FF-403VP FF-403BP
Detection Distance With
Diffuse Fiber Unit
200mm 50mm 100mm 200mm 150mm
Detection Distance With
Thru-beam Fiber Unit
1000mm 400mm 600mm 1000mm 700mm
Working Voltage 12~24VDC±10%
Current Consumption 40mA max
Output Type NPN L.on/D.on PNP L.on/D.on
Load Current 100mA Max. at DC 24V
Protection Circuit Polarity Reverse protection, Short -Circuit protection, Over-current Protection
Response Tme 100μs,300μs,1ms, 2ms adjustable
Indicator LED output Indicator:red stable:green, please keep this LED non-flashing
Sensitivity adjustment 4 Digits0000-9999 , 0000-9999
Time delay function 0ms,5ms,50ms,500ms,5s,0s,five choice by setting button.
Lightness 100%,50%,25%,12% light source power can be adjusted via button
Operating Temperature -10 ~ +50°C(no-frozen)
Ambient Humidity 35 ~85%RH
Protection Degree IP64
Material Housing material:PC+ABS;Cover: Polycarbonate
Accessory 1Pcs Mounting Bracket
Wiring Method FF-403 Pre-wired Φ4.2×2M/3-Wires
FF-403 /D M8 connector type

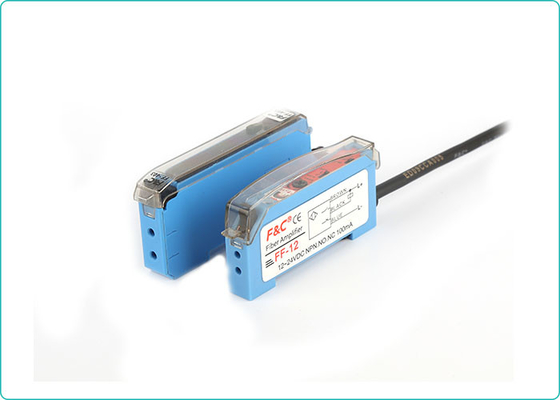

Analog 0-5V Digital Fiber Optic Sensor Amplifier FF-403V 3-wire Red Light 2

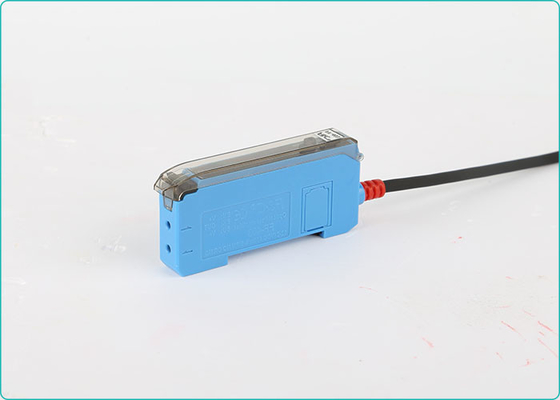

Analog 0-5V Digital Fiber Optic Sensor Amplifier FF-403V 3-wire Red Light 3





Analog 0-5V Digital Fiber Optic Sensor Amplifier FF-403V 3-wire Red Light 4Analog 0-5V Digital Fiber Optic Sensor Amplifier FF-403V 3-wire Red Light 5Analog 0-5V Digital Fiber Optic Sensor Amplifier FF-403V 3-wire Red Light 6
