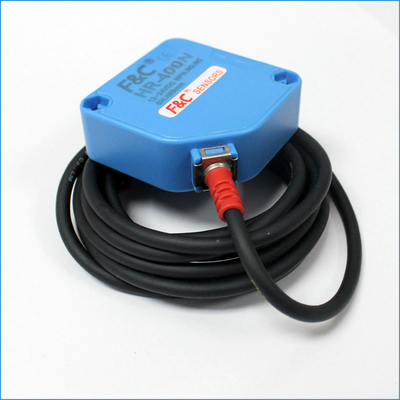

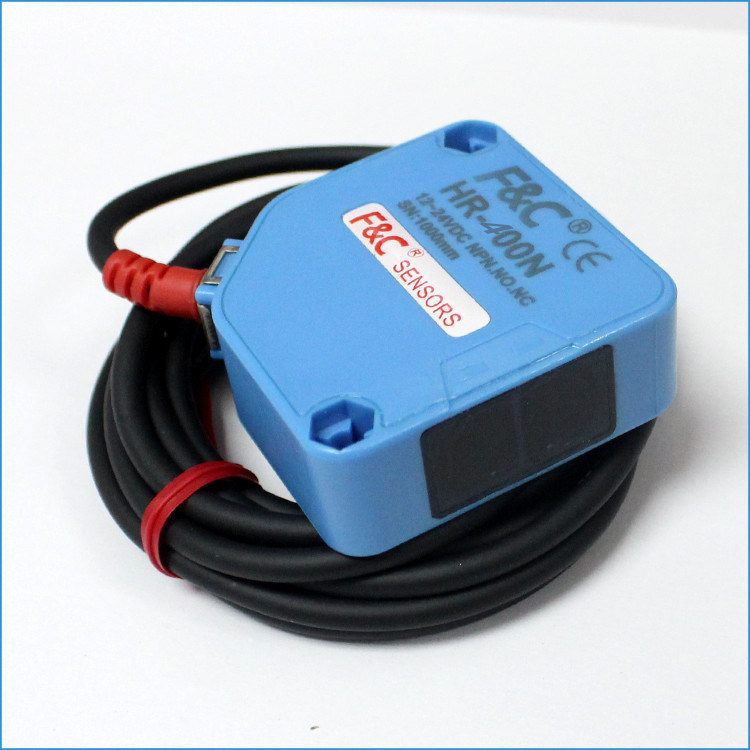

Through-beam Reflective Photoelectric Sensors Switch 5M Sensing Photo Sensor
Product Details:
| Place of Origin: | China |
| Brand Name: | F&C |
| Certification: | CE RoHS |
| Model Number: | HRTI-S500PC R2M |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable |
| Packaging Details: | Standard export Package |
| Delivery Time: | 10days after deposit |
| Supply Ability: | 5000pcs/month |
|
Detail Information |
|||
| Reflection: | Through-beam | Operation Voltage: | 12-24VDC |
|---|---|---|---|
| Sensing Range: | 5m | Operating Temp.: | -10 To 60℃(No Condensation) |
| Protection Grade: | IP66 | Circuit Protection: | Short-ciruit Protection |
| Highlight: | photo sensor switch,photoelectric proximity switch |
||
Product Description
Through-beam Reflective Photoelectric Sensors Switch 5M Sensing Photo Sensor
Detail Description:This HRTI-S500PC R2M Through-beam Reflective Sensor has 500cm sensing distance, 4 wires make customer can choose Normal Open or Normal Close by themself.50*50mm dimension make this type photoelectric sensor can be long distance, through-beam type photoelectric sensor can reach 10 meter. Retro-reflective type can be 4 meter
( DC Photoelectric Sensor) advantages :
1. Ideal for general-purpose logistics photoelectric switch device.
2. 40cm detecting distances.
3. Water-proof IP66.
4. Global(EN Specifications and NPN,PNP applicable.
5. OEM order accepted,
| Model | HRRI-S500PC R2M |
| Detection Type | Through-beam |
| Standard Detection Object Size | Diameter 5mm opaque object |
| Detection Distance | 500cm |
| Output Type | PNP.NO.NC |
| Light Source | 850nm infared modulated light |
| Operating Voltage | 12-24VDC |
| Response Time | 0.5ms Max. |
| Current Consumption | 15mA Max. |
| Load current | 100mA Max at 24 VDC |
| Insulation Resistance | 20M Ohm Min. at 500 VDC |
| Dielectric strength | 60 seconds at 1000VAC 60HZ |
| Protection Degree | IP66 |
| Operating Temperature | -10 to -50 (No Icing) |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| Material | ABS |
| Wire Method | dia4*2M/4 wires |
Specifications for DC Photoelectric Sensor:
Dimensions (DC Photoelectric Sensor):
