Plastic Sensing Switch 12V DC 5mm or 10mm Capacitive Type Proximity Sensor
Product Details:
| Place of Origin: | China |
| Brand Name: | F&C |
| Certification: | CE,RoHS,ISO |
| Model Number: | FKC series |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable |
| Packaging Details: | Standard Export Package |
| Delivery Time: | 10days after receiving the deposit |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000 Pcs Per month |
|
Detail Information |
|||
| Scanning Distance: | 5mm/10mm/15mm | Sensing Object: | Non-metallic Object, Plastic |
|---|---|---|---|
| Voltage: | 12-24V DC | Frequency: | 600HZ |
| Material: | PBT | Output: | NPN Or PNP |
| Shape: | Pipeline/ Round / Square | MOQ: | 1pcs |
| High Light: | capacitive proximity switch,capacitive proximity detector |
||
Product Description

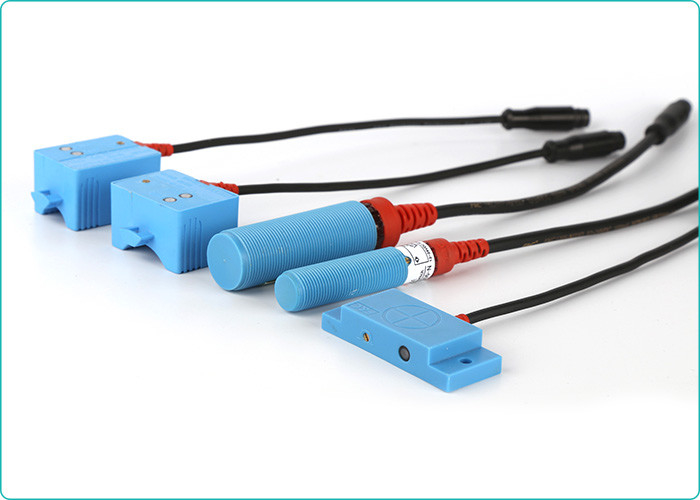

Plastic Sensing Switch 12V DC 5mm or 10mm Capacitive Type Proximity Sensor
Plastic Sensing Switch 12V DC 5mm or 10mm Capacitive Type Proximity Sensor
Capacitive Proximity sensor which is not like inductive proximity sensor for metal detection, it is to sense non-metallic objects without any physical contact, like plastic, powder, wood, paper, water level...... There are many different models for choice, all of these models are NPN and PNP available with normally open or normally close.
Cylinder shape series FKC1205, FKC1810, FKC3430,FKC3015 diameter 12mm/18mm/30mm/34mm, sensing distance 5mm/10mm/15mm/30mm .
Rectangular shape series FKCN2210, 10mm detection plastic.
Pipeline water level detection FKCT10, FKCT15.
Specifications
| Model | FKCN2210-N FKCN2210-N2 FKCN2210-P FKCN2210-P2 |
FKC1810-N FKC1810-N2 FKC1810-P FKC1810-P2 |
FKC3430-N FKC3430-N2 FKC3430-P FKC3430-P2 |
FKC1205-N FKC1205-N2 FKC1205-P FKC1205-P2 |
| Detecting distance | 10mm | 10mm | 30mm | 5mm |
| Recommand distance | 2-10mm | 2-10mm | 2-30mm | 1-5mm |
| Standard sensing object | Non-metal | |||
| Response frequency | 600Hz | |||
| Hysteres | ≤10% detection distance | |||
| Operating voltage | 12~24V DC can customized 5V | |||
| Current consumption | <10mA no-load | |||
| Load current | 24V 100mA Max | |||
| Leakage current | <0.01mA no-load | |||
| Residual voltage | <1.0VDC | |||
| Operating Temperature | -25°C-+70°C | |||
| Waterproof degree | IP66 | |||
| Material | ABS or PBT | |||
| Wiring method | φ4.0×2M/3-wires |
|||
Capacitive Proximity Sensor List
| Model | Sensing Range | Dimension |
| FKC1205 | 5mm | M12*60 Cylindrical |
| FKC1810 | 10mm | M18*45 Cylindrical |
| FKC3015 | 15mm | M30*80 Cylindrical |
| FKC3430 | 30mm | φ34*80 Cylindrical |
| FKCN2210 | 10mm | 50*20*10 Rectangular |
| FKCT10 | 13mm | φ13 Pipeline usage |
| FKCT15 | 26mm | φ26 Pipeline usage |
| FKC1810PTFE | 10mm | M18*67.5 Cylindrical |
