Plastic Detector 24V DC 3 Wires Capacitive Proximity Sensor for 26mm Pipeline Install
Product Details:
| Place of Origin: | China |
| Brand Name: | F&C |
| Certification: | CE,RoHS,ISO |
| Model Number: | FKCT15-P |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable |
| Packaging Details: | Standard Export Package |
| Delivery Time: | 10days after receiving the deposit |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000 Pcs Per month |
|
Detail Information |
|||
| Scanning Distance: | 12-26mm | Sensing Object: | Non-metallic Object |
|---|---|---|---|
| Voltage: | 12-24V DC | Frequency: | 200HZ |
| Material: | PBT | Output: | PNP NO Or PNP NC |
| High Light: | capacitive proximity switch,capacitive prox sensor |
||
Product Description

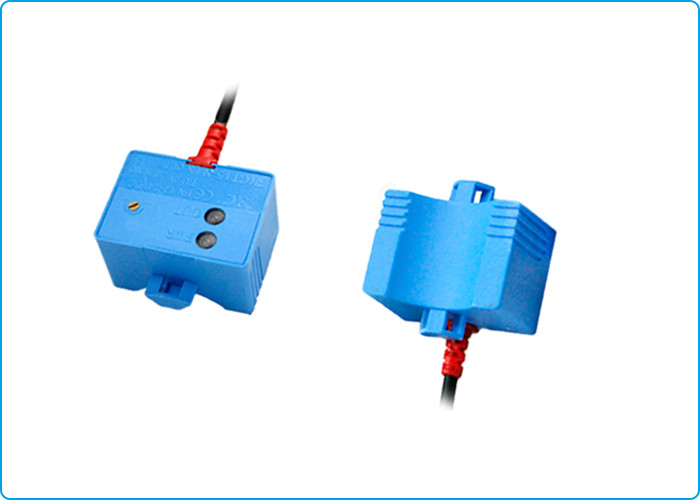

Plastic Detector 24V DC 3 Wires Capacitive Proximity Sensor for 26mm Pipeline Install
Plastic Detector 24V DC 3 Wires Capacitive Proximity Sensor for 26mm Pipeline Install
Capacitive Proximity sensor is to sense non-metallic objects without any physical contact, like plastic, powder, wood, paper, water level...... There are many different models for choice.
Cylinder shape FKC1205, FKC1810, diameter 12mm/18mm, sensing distance 5mm/10mm .
Rectangular shape proximity sensor FKCN2210, 10mm detection plastic.

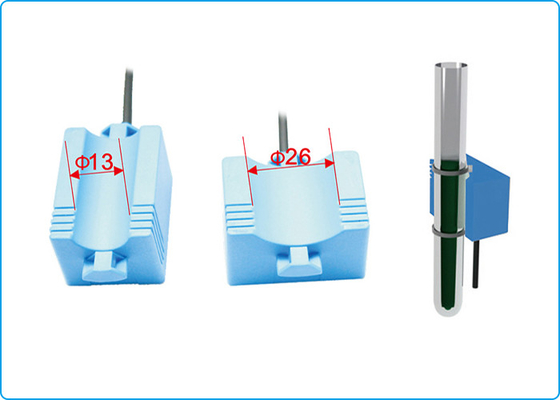

Pipeline water level detection FKCT10, FKCT15.
Specifications
| F&C FKCT15-P 26mm 12-24V dc capacitive proximity sensor | |
| Model | FKCT15-P |
| Detection Distances | 26mm |
| Standard Sensing Object | Non-Metal |
| Response Frequency | 200HZ |
| Hysteresis | Less than 10% of sensing distance |
| Detection Method | NPN NO |
| Operating Voltage | 12-24 VDC |
| Current Consumption | Less than 10mA (No Load) |
| Load current | 100mA Max at 24 VDC |
| Residual Voltage | Less than 1.0VDC |
| Leakage Current | Less than 0.01mA( No Load) |
| Protection Degree | IP66 |
| Operating Temperature | -25℃-70℃ (No Icing) |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| Material | PBT |
| Wire Method | diameter 4mm*2M/-3wires |
Applications
Capacitive Proximity Sensor List
| Model | Sensing Range | Dimension |
| FKC1205 | 5mm | M12*60 Cylindrical |
| FKC1810 | 10mm | M18*45 Cylindrical |
| FKC3015 | 15mm | M30*80 Cylindrical |
| FKC3430 | 30mm | φ34*80 Cylindrical |
| FKCN2210 | 10mm | 50*20*10 Rectangular |
| FKCT10 | 13mm | φ13 Pipeline usage |
| FKCT15 | 26mm | φ26 Pipeline usage |
| FKC1810PTFE | 10mm | M18*67.5 Cylindrical |
