NPN NO 12mm Pipeline Capacitive Proximity Switch For Beer Level Detection
Product Details:
| Place of Origin: | China |
| Brand Name: | F&C |
| Certification: | CE,RoHS,ISO |
| Model Number: | FKCT10-N |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | 15-25USD/pcs |
| Packaging Details: | Standard Export Package |
| Delivery Time: | 10days after receiving the deposit |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000 Pcs Per month |
|
Detail Information |
|||
| Scanning Distance: | 8-12mm | Sensing Object: | Pipeline |
|---|---|---|---|
| Voltage: | 12-24V DC | Frequency: | 200HZ |
| Material: | PBT | Entry Cable: | Dia4*2m/3 Wires |
Product Description

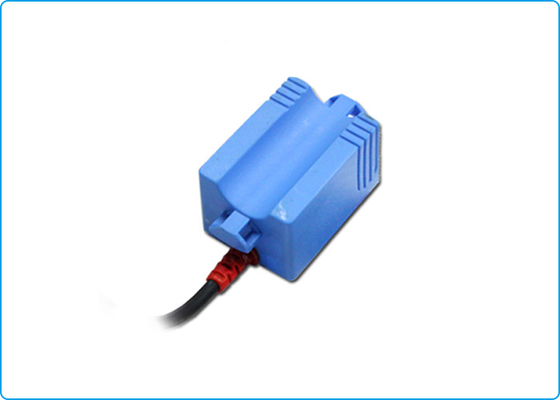

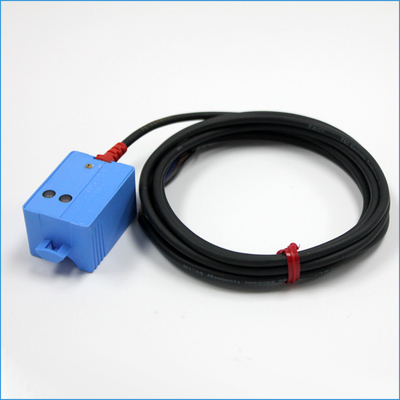

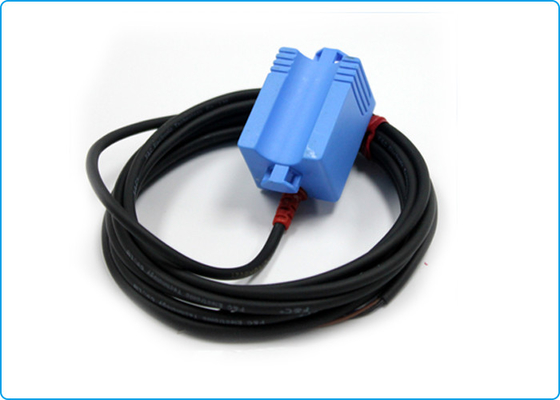

NPN NO 12mm Pipeline Capacitive Proximity Switch For Beer Level Detection
12mm Pipeline Capacitive Proximity Switch For Beer Level Detection
Detail Description:
FKCT Series pipeline capacitive Proximity Switch can detect the liquid level without effect of color and bubles.So it is the best solution for beer detection
We have 2 kind Pipeline Capacitive Proximity Switch.
One Pipeline Capacitive Proximity Switch is suitable for 8-12mm pipeline FKCT10-N
another One Pipeline Capacitive Proximity Switch is suitable for 12-26mm pipeline FKCT15-N.
Feature of FKCT level detection capacitive proximity switch
1.suitable for 8-12mm width pipe

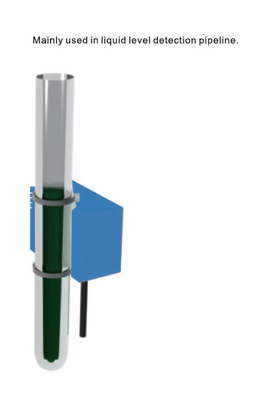

2.Mainly used in liquid level detection pipeline.
3.Detection distance and sensitivity can be adjusted.
4.The product with connector can be customized.
5.Not affected by bubbles and liquid color.
Specification for 12mm One Pipeline Capacitive Proximity Switch
| NPN NO | FKCT10-N |
| NPN NC | FKCT10-N2 |
| PNP NO | FKCT10-P |
| PNP NC | FKCT10-P2 |
| Applicable pipeline | 8-12mm |
| Response frequency | 200Hz |
| Hysteresis | ≤10% detection distance |
| Operating voltage | 12-24VDC 10% |
| Current consumption | <10mA |
| Load current | 24V 100mA Max |
| Leakage current | <0.01mA No-load |
| Offset Voltage | <1.0VDC at 100mA |
| Operating Temperature | -25 to +70 degree |
| Waterproof degree | IP66 |
| Meterial | PBT |
| Wiring method | φ3×2M/3-wires |

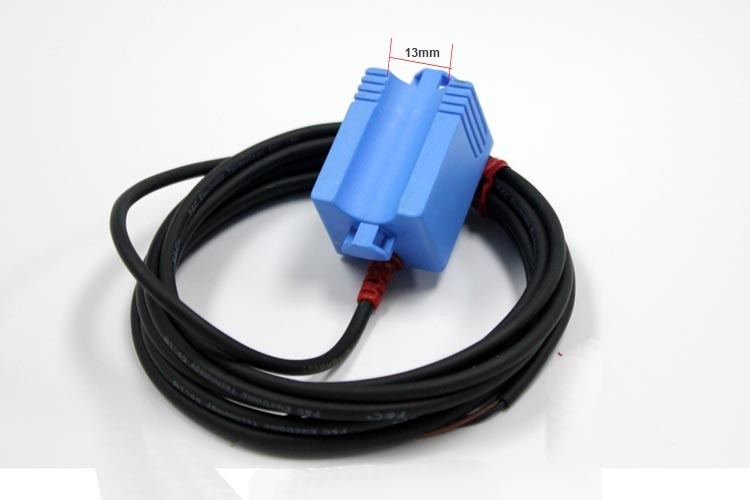

Dimension 12mm Pipeline Capacitive Proximity Switch For Beer Level Detection
Our services
1.Prompt reply to our customer, we have to reply all the email within 24hrs.
2.Provide free replacement if there is any quality problem with our product.
3.Accept OEM Order,Ship the product with your logo.

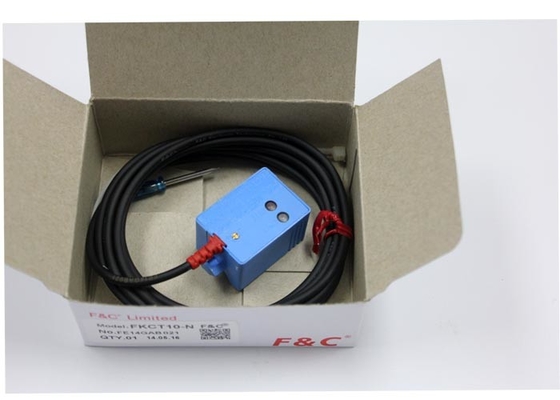

Packaging&Shipping
1.We will ship our product aboard with standard export package.
2.For small Qty, We will Ship our product to you by express.
3.For mass production , We will ship our product to you by Air or sea.
