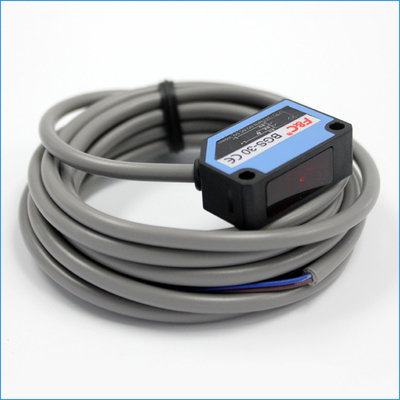

NPN 12Volt Background Suppression Industrial Photoelectric Sensor
Product Details:
| Place of Origin: | China |
| Brand Name: | F&C |
| Certification: | CE |
| Model Number: | BGS-30 |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable |
| Packaging Details: | Standard Export Package |
| Delivery Time: | 10days after deposit |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 5000pcs per month |
|
Detail Information |
|||
| Mini.Detect Object: | Φ1.5mm | Sensing Distance: | 300mm |
|---|---|---|---|
| Operation Voltage: | 12-24VDC | Load Current: | 100mA At 24VDC |
| Output Method: | NPN NO.NC | Operating Tempera: | -10 To 60℃(No Condensation) |
| Protection Grade: | IP66 | Response Time: | 0.5ms |
| High Light: | photo sensor switch,photoelectric proximity switch |
||
Product Description
NPN 12Volt Background Suppression Industrial Photoelectric Sensor
NPN 12Volt Background Suppression Industrial Photoelectric Sensor

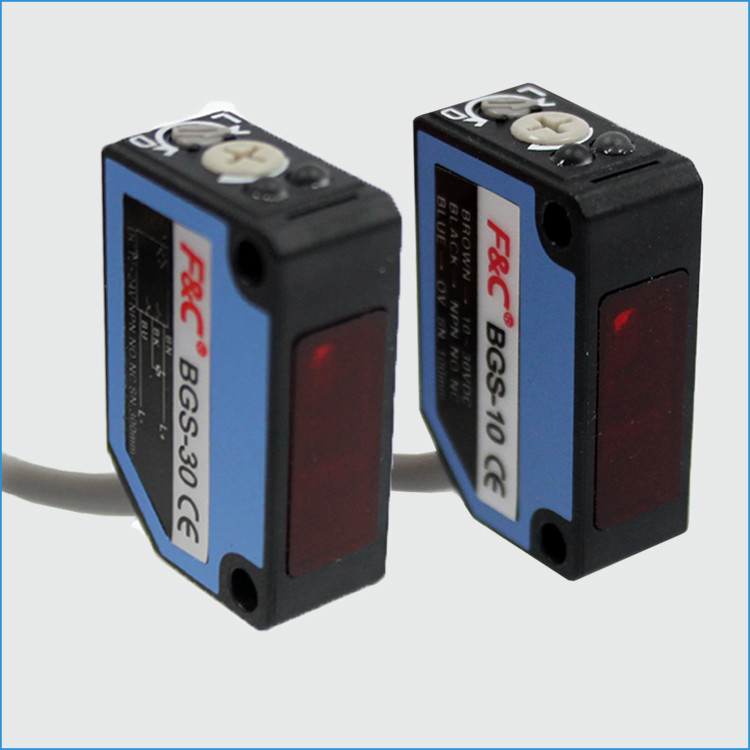

| NPN NO. NC | BGS-10 | BGS-30 |
| Standard Detection Object Size | Dia1.0mm | Dia 1.5mm |
| Detection Distance | 100mm | 300mm |
| Light Source | 630nm Red modulated light | |
| Operating Voltage | 12-24 VDC | |
| Response Time | 0.5ms Max. | |
| Current Consumption | 300mA Max. | |
| Load current | 100mA Max at 24 VDC | |
| Insulation Resistance | 20M Ohm Min. at 500 VDC | |
| Dielectric strength | 60 seconds at 1000VAC 60HZ; | |
| Protection Degree | IP66 | |
| Operating Temperature | -10 to -50 (No Icing) | |
| Reverse Polarity Protection | Yes | |
| Short Circuit Protection | Yes | |
| Material | Glass fiber reinforced resin | |
| Ambient Light | 500Lux incandescent light, 20000lux sunshine | |
| Wire Method | Diam 4mm*2M/-3wires | |
