Non-contact Electronic Square Inductive Proximity Sensor Detect Metal NPN NO NC
Product Details:
| Place of Origin: | China |
| Brand Name: | F&C |
| Certification: | CE RoHS ISO |
| Model Number: | F3N series Square shape |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable |
| Packaging Details: | Standard export Package |
| Delivery Time: | 10days after depsite |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 10000Pcs Per Month |
|
Detail Information |
|||
| Output Method: | PNP NO / PNP NC/ NPN NO/ NPN NC | Hole Size: | 2mm/ 4mm/5mm/8mm |
|---|---|---|---|
| Sensing Object: | Iron , Steel | Operating Voltage: | 12-24VDC+/-10% |
| Response Frequency: | 800 HZ | Polarity Reverse Protection: | Yes |
| Protection Grade: | IP67 | Operating Temperature: | -25~70℃ |
| Material: | PBT/ABS | ||
| High Light: | inductive type proximity sensor,inductive proximity switch |
||
Product Description

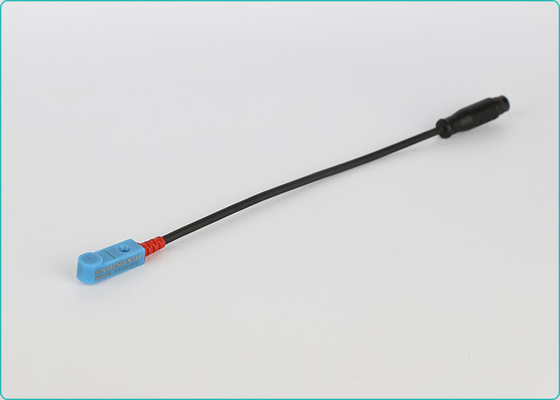

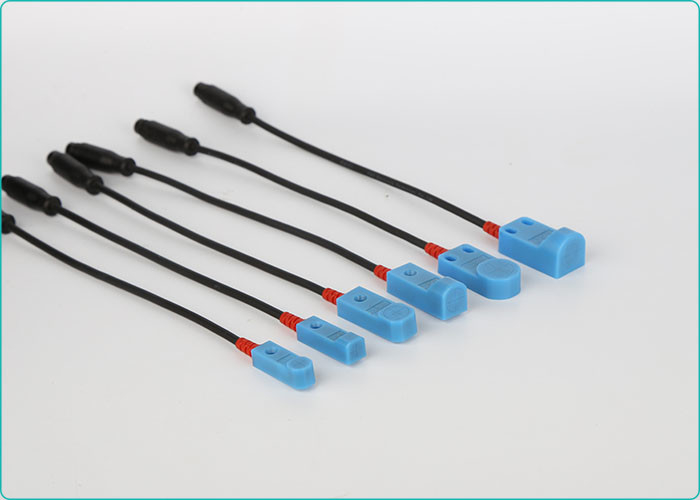

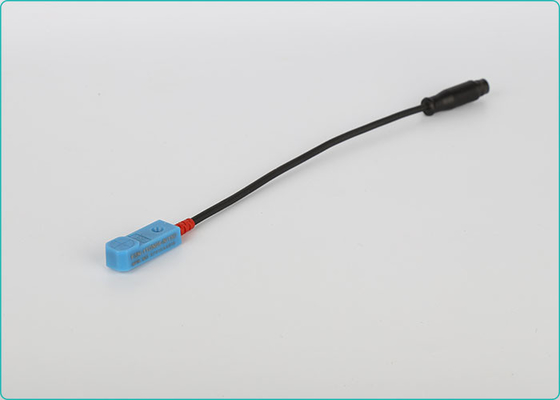

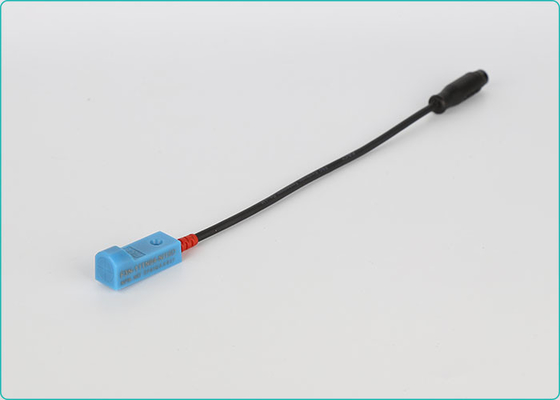

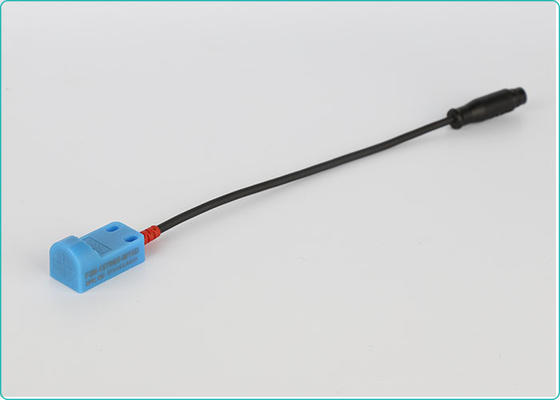

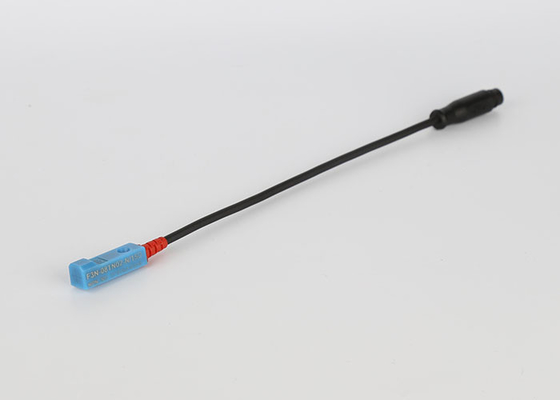

Non-contact Electronic Square Inductive Proximity Sensor Detect Metal NPN NO NC
Non-contact Electronic Square Inductive Proximity Sensor Detect Metal NPN NO NC
Specifications for square proximity sensor:
| Model | F3N-08DN02-N R2M |
| Induction way | Vertical sensing 2mm |
| Maximum detection | 2mm |
| Standard sensing object | 8*8*1(iron) |
| Outputing Way | NPN NO |
| Response Frenquency | standard 600Hz |
| Opearting voltage | 12-24VDC, 5V customizable |
| Loard current | 24V 100mA max |
| operating temperature | -25 to +70 degree |
| Material | ABS |
| Protection degree | IP67 |
Features advantages for 2mm proximity sensor switch:
1. Low price, small space and easy to install.
2. Various modes for your choice.
3. Multi-functions like waterproof, oil-proof,dustproof and many other applications.
5. OEM order accepted.
