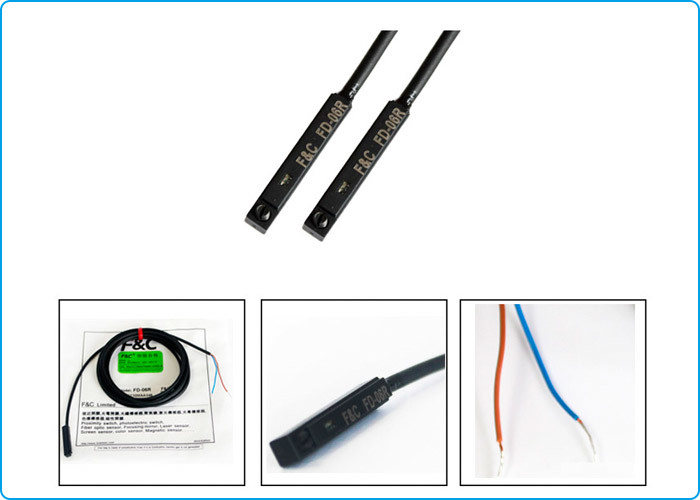

Mini Square 2 Wire Electric Magnetic Switch Reed Switch Sensor Normally Open
Product Details:
| Place of Origin: | China |
| Brand Name: | F&C |
| Certification: | CE RoHS |
| Model Number: | FD-06R |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable |
| Packaging Details: | Standard Export Package |
| Delivery Time: | 10days after deposit |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 10000Pcs Per Month |
|
Detail Information |
|||
| Switch Type: | Normal Open | Operating Voltage: | 12-24VDC |
|---|---|---|---|
| Frequency: | 1000HZ | Indicator: | Red Indicator |
| Waterproof Grade: | IP67 | Operating Temperature: | -10 ~ +70℃ |
| Highlight: | magnetic switch sensor,normally open switch |
||
Product Description

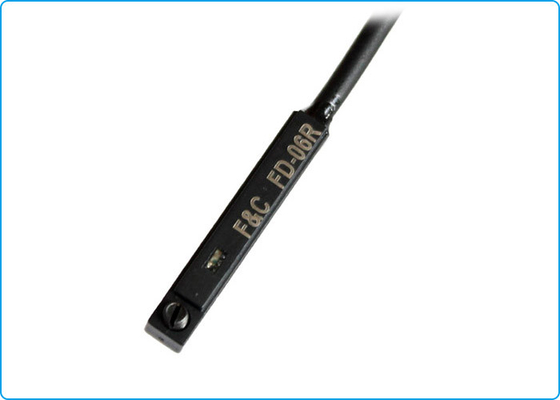

Mini Square 2 Wire Electric Magnetic Switch Reed Switch Sensor Normally Open
2 Wires Electric Magnetic Switch Sensor are usder for cylinder and has function of postion for cylinder. We can make both 2 wires and 3 wires magnetic swtich
M8 M12 plug type is availabe.
Specification
| Model | FD-06R | FD-06N | FD-06P |
| Diagram | |
|
|
| Wires | 2-wire | 3-wire | |
| Switch Type | Reed pipe Normal Open |
NPN NO | PNP NO |
| Operating Voltage | 5-120V DC/AC | 10-30VDC | |
| Switching Current | 100mA.Max | 200mA.Max | |
| Contact Power | 3.5W Max | 6W Max. | |
| Current Comsumption | / | 11mA max. | |
| Indicator | Red LED | Red LED | Green LED |
| Cable | Dia2.8 2C ,PVC | ||
| Frequency | 1000HZ | ||
| Operating Temperature | -10 ~ +70℃ | ||
| Shock | 30G | 50G | 50G |
| Vibration | 9G | ||
| Waterproof Grade | IP67 | ||
| Circuit Protection | No | Polarity reverse and short-circuit protection | |
