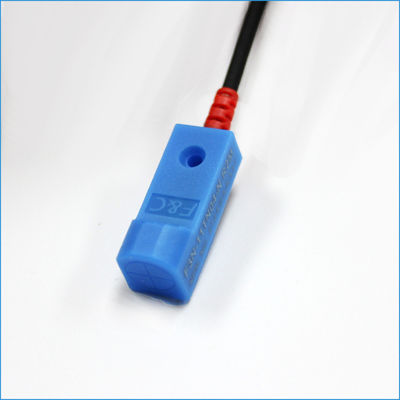

DC 12Volt 4mm Sensing Inductive Proximity Switch Metal Position Detection
Product Details:
| Place of Origin: | China |
| Brand Name: | F&C |
| Certification: | CE, RoHS |
| Model Number: | F3N-11TN04-N R2M |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable |
| Packaging Details: | Standard export Package |
| Delivery Time: | 10days after depsite |
| Supply Ability: | 10000Pcs Per Month |
|
Detail Information |
|||
| Output Method: | NPN NO | Detection Distance: | 4mm |
|---|---|---|---|
| Operating Voltage: | 12~24VDC | Standard Detection Object: | 8*8*1(Iron) |
| Response Frequency: | 600HZ | Operating Temperature: | -25~70℃ |
| Waterproof Grade: | IP67 | Material: | ABS |
| High Light: | inductive prox switch,inductive proximity switch |
||
Product Description
DC 12Volt 4mm Sensing Inductive Proximity Switch Metal Position Detection
DC 12Volt 4mm Sensing Inductive Proximity Switch Metal Position Detection
| Small square proximity switch | |
| Induction Direction | Model |
| Front induction | F3N-11TNO4-N R2M F3N-11TNO4-N2 R2M F3N-11TNO4-P R2M F3N-11TNO4-P2 R2M F3N-11TNO4-B R2M F3N-11TNO4-B2 R2M |
| Above induction | F3N-11DNO4-N R2M F3N-11DNO4-N2 R2M F3N-11DNO4-P R2M F3N-11DNO4-P2 R2M F3N-11DNO4-B R2M F3N-11DNO4-B2 R2M |
| Detection distance | 4mm |
| Recommand distance | 3.2mm |
| Standard sensing object | 10*10*1(iron) |
| Response frequency | 600Hz |
| Hysteresis | no more than 10% Detection distance |
| Operating voltage | 12-24VDC 10%/(customize 5V) |
| Current consumption | less than 10mA |
| Load current | 24V 100mA Max |
| Leakage current | less than 0.01mA No-load |
| Residual voltage | less than 1.0VDC |
| Operating Temperature | -25 TO +70 |
| Waterproof degree | IP67 |
| Material | ABS |
| Wiring method | φ2.8×2M/3-wires φ3×2M/3-wires φ3×2M/2-wires |
Features and advantages for metal detector sensor:
1. Easy to install with limited space.
2. Many models for choice like top sensing, front sensing.
3. High quality usage to resistant oil, water,dust.
4. OEM order accepted.
Before-sales Services
1.24-hours online service;is available here. Once you have any questions, just contact us and our professional staff will reply very quickly. Email, Skype, Whatsapp or Online Message are acceptable.
2.Market information;also will be provided. Since we are an experienced manufacturer of sensor, the market information about sensors will be offered as long as you need.
On-purchase Services:
1.The information of sensors that we provided is fully presented including product details, pictures, delivery and so on;
2.All your problems or worries will be solved quickly by our sales. It is worth noting that the;prices of our; sensors;are quite;negotiable. We have large discount for big quantity.
After-sales Services
1. The warranty period is 18 months.
2. If we send the;wrong parts;to you, free replacement will be available.
3. As for the installation of the parts, if you have any questions, do not hesitate to contact us at any time.
Q:Are you sensors manufacturer?
A:Yes,over 30 years' experience in sensors field.We can make more profit for you.
our product has CE certificate.
Q:Can I get samples for test?
A:Yes,wesupport free test samples and shipping cost at your side.
Q: What's your leadtime?
A:Generally speaking,we have stocks for 110 kind of different models and can ship at any time. If we don't have stock,our leadtime is 5-7 working days.;We will pull in the production schedule if your demand is urgently.
Q: What's your payment term?
A:You can pay us by T/T, Paypal, Westunion.
Q:How do you arrange the shipment ?
A:;We normally ship by Fedex, UPS and TNT, we are VIP of this courier and get 60% discount.We also can accept other ship method if there is an need.;
