5mm Slot M8 Connector 24VDC NPN Adhesive Label Sensor Potentionmeter with CE
Product Details:
| Place of Origin: | China |
| Brand Name: | F&C |
| Certification: | CE,Rohs |
| Model Number: | FC-2107P/D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | single box package |
| Delivery Time: | 7-10days |
| Payment Terms: | TT, paypal, Western Union |
| Supply Ability: | 50pcs per week |
|
Detail Information |
|||
| Power Supply: | 12-24V DC | Output Type: | NPN NO. NC |
|---|---|---|---|
| Accuracy: | 0.5mm | Slot Width: | 5mm |
| Application: | Packing Machine | Theory: | Optical Label Sensor |
| Load Current: | 100mA At 24VDC | Wiring: | M8 4pin Connector |
| High Light: | label counter sensor,water label sensor |
||
Product Description

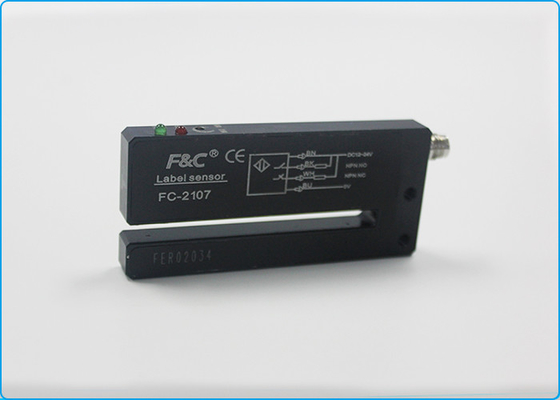

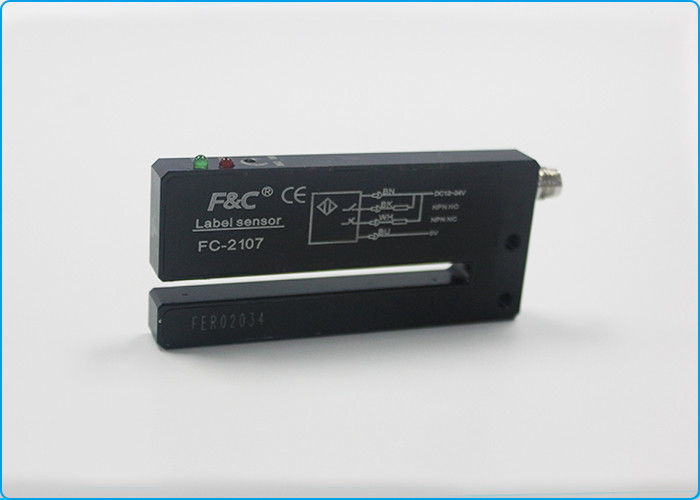

5mm Slot M8 Connector 24VDC NPN Adhesive Label Sensor Potentionmeter with CE
5mm Slot M8 Connector 24VDC NPN Adhesive Label Sensor Potentionmeter with CE
Optical Label sensor used for most common sticker label and not suitable for clear label sensing, it is very popular in market with competitive price. Model FC-2107/D, it is NPN output with M8 4 pin connector and potentionmeter, easy to adjust, install and change.

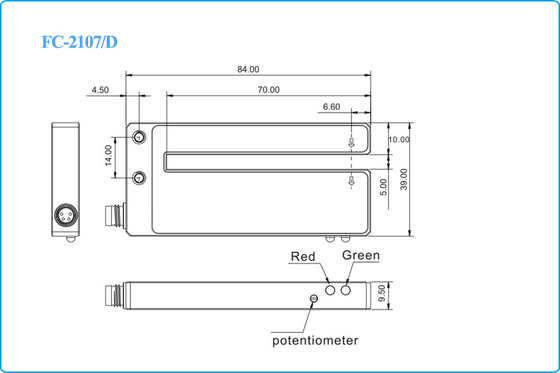

Specifications for Adhesive Optical Label sensor:
| Model | FC-2107/D |
| Output type | NPN NO NC |
| Detection distance | 5mm |
| Light source | 940nm infrared modulated light |
| Operating voltage | DC12-24V±10% |
| Current consumption | 15mA Max |
| Load current | 100mA Max at DC ;24V |
| Protection circuit | Reverse polarity protection and short circuit protection |
| Response time | 500us Max |
| Leakage current | <0.01mA no-load |
| Operating temperature | -10℃-+50℃(without icing or condensation) |
| Storage temperarure | -20℃~+60℃(No freezing ) |
| Ambient humidity | 35%-85% RH |
| Protection degree | IP66 |
| Meterial | Aluminium metal sheet |
| Wiring method | φ4mm×2M/4-wires/φ4mm×2M/M8 4-wires |
Applications
Video or more details, welcome to inquiry us.
