24VDC Clear Transparent Label Detection Capacitive Label Sensor
Product Details:
| Place of Origin: | China |
| Brand Name: | F&C |
| Certification: | CE,Rohs |
| Model Number: | FC-4100/D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | single box package |
| Delivery Time: | 7-10days |
| Payment Terms: | TT, paypal, Western Union |
| Supply Ability: | 500pcs per week |
|
Detail Information |
|||
| Power Supply: | 12-24V DC | Output Type: | NPN+PNP NO Or NPN+PNP NC |
|---|---|---|---|
| Accuracy: | 0.2mm | Slot Width: | 2mm |
| Application: | Transparent And Non-transparent Label Usage For Labeling Machine | Character: | Reversible Direction Sensing Available |
| Load Current: | 100mA At 24VDC | Response Time: | 0.1ms |
Product Description
24VDC Clear Transparent Label Detection Capacitive Label Sensor
24VDC Clear Transparent Label Detection Capacitive Label Sensor
Capacitive sensors use an electric field to sense the amount of material in the sensor. The electric field exists in the gap between a sensing element in the top of the sensor and the grounded baseplate of the sensor. Web material placed in that gap changes the way the electric field behaves — more material changes it more. The electronics in the clear label sensor can sense these changes in the electric field. Capacitive label sensors are the most precise label sensors on the market.
Capacitive Label Sensor is the most competetive Solutions for clear and transparent label detection. Compared to common Sticker Label sensor , it is strong power, fast and stable, especially for transparent label sensing. Compared to Ultrasonic label sensor , it is much cheaper.
Datasheet for NPN PNP Capacitive label sensor
|
Model |
FC-4100/D |
|
Output type |
PNP+NPN NO.NC |
|
Groove Length |
85mm |
|
Detection distance |
0.7mm |
|
Accuracy & repeat |
0.2mm |
|
Operating voltage |
DC12-24V±10% |
|
Current consumption |
≤25mA |
|
Load current |
100mA Max at 24VDC |
|
Protection circuit |
Reverse polarity protection and short circuit protection |
|
Response time |
0.1ms |
|
Frequency |
5Khz |
|
Standard & Sensitivity |
Smart Key setting |
|
Indicator |
Red: Balance benshmark and sensitivity level |
|
Ambient temperature |
0-60 degree |
|
Connector |
M12 connector 5pin |
|
Meterial |
Aluminium |
|
Wiring method |
φ4mm×2M/4-wires |

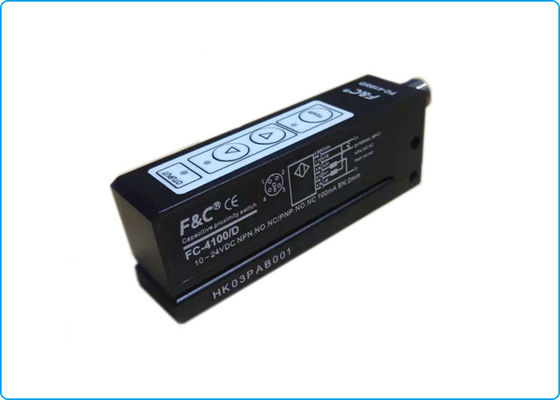

Photo for FC-4100 Capacitive Label sensor
Wiring Drawing for FC-4100/D capacitive label sensor
Label Sensor List
|
Model |
Slot width |
Output |
Application |
|
FC-2100 |
2mm |
NPN NO NC or PNP NO NC |
Universal adhesive labels |
|
FC-2104 |
2mm |
NPN NO NC or PNP NO NC |
Universal adhesive labels |
|
FC-2107 |
5mm |
NPN NO NC or PNP NO NC |
Universal adhesive labels |
|
FC-2110 |
5mm |
NPN NO NC or PNP NO NC |
Universal adhesive labels |
|
FC-2200 |
6mm |
NPN NO NC or PNP NO NC |
Universal adhesive labels |
|
FC-2600 |
2mm |
NPN NO NC or PNP NO NC |
Universal adhesive labels |
|
FC-2300 |
3mm |
NPN NO NC or PNP NO NC |
Clear adhesive labels |
|
FC-4100 |
2mm |
NPN+PNP NO |
Clear adhesive labels |
Video or more details, welcome to inquiry us.
