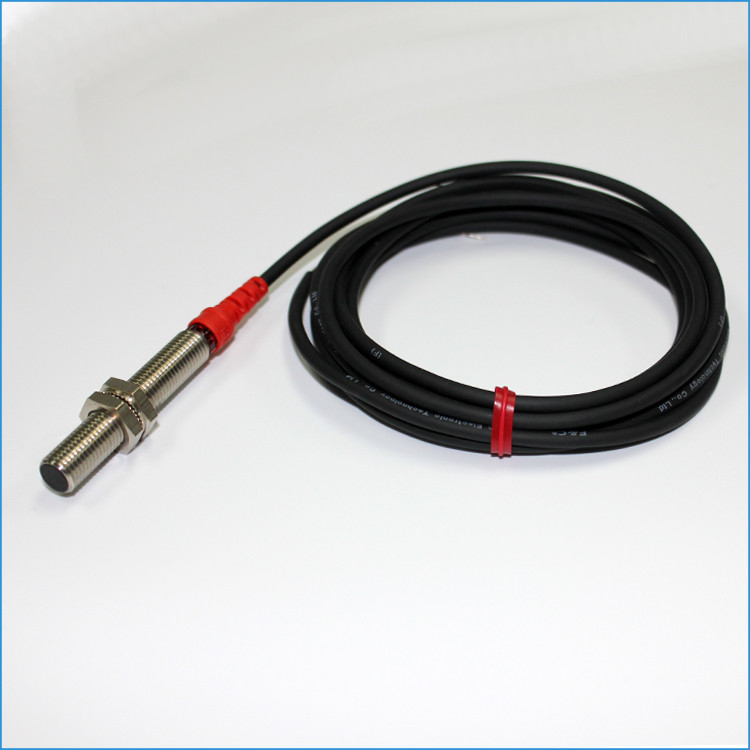

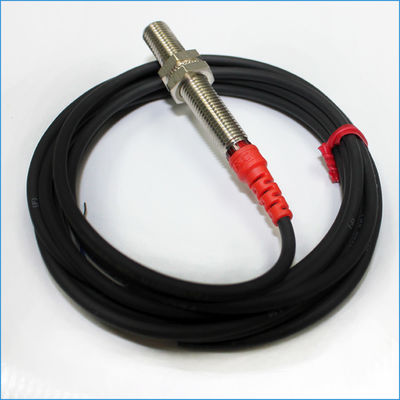

24V DC M8 Industiral Automation Sensors Switch 3 Wires PNP NO Inductive Switch
Product Details:
Place of Origin: | China |
Brand Name: | F&C |
Certification: | CE, RoHS |
Model Number: | F3C-08KS01-N R2M |
Payment & Shipping Terms:
Minimum Order Quantity: | negotiable |
---|---|
Price: | negotiable |
Packaging Details: | Standard export Package |
Delivery Time: | 10days after deposit |
Payment Terms: | Western Union, T/T |
Supply Ability: | 10000Pcs Per Month |
Detail Information |
|||
Output Method: | NPN NO | Mounting Method: | Flush |
---|---|---|---|
Detection Distance: | 1mm | Standard Detection Object: | 8*8*1(Iron) |
Response Frequency: | 1000Hz | Short-circuit Protection: | Yes |
Operating Temperature: | -25~70℃ | Material: | PBT And SUS304 |
High Light: | industrial automation devices,industrial proximity sensor |
Product Description
24V DC M8 Industiral Automation Sensors Switch 3 Wires PNP NO Inductive Switch
24V DC M8 Industiral Automation Sensors Switch 3 Wires PNP NO Inductive Switch
Product details
standard shell/shield; | F3C-08KS01-N R2M | NPN.NO | 1mm | 8×8×1(iron) | φ3×2M/3-wires |
F3C-08KS01-N2 R2M | NPN.NC | ||||
F3C-08KS01-P R2M | PNP.NO | ||||
F3C-08KS01-P2 R2M | PNP.NC | ||||
standard shell/non-shield; | F3C-08KN02-N R2M | NPN.NO | 2mm | 8×8×1(iron) | φ3×2M/3-wires |
F3C-08KN02-N2 R2M | NPN.NC | ||||
F3C-08KN02-P R2M | PNP.NO | ||||
F3C-08KN02-P2 R2M | PNP.NC | ||||
short shell/shield;; | F3C-08ES01-N R2M | NPN.NO | 1mm | 8×8×1(iron) | φ3×2M/3-wires |
F3C-08ES01-N2 R2M | NPN.NC | ||||
F3C-08ES01-P R2M | PNP.NO | ||||
F3C-08ES01-P2 R2M | PNP.NC | ||||
short shell/non-shield; | F3C-08EN02-N R2M | NPN.NO | 2mm | 8×8×1(iron) | φ3×2M/3-wires |
F3C-08EN02-N2 R2M | NPN.NC | ||||
F3C-08EN02-P R2M | PNP.NO | ||||
F3C-08EN02-P2 R2M | PNP.NC | ||||
standard shell/shield/double sensing range | F3L-08KS02-N R2M | NPN.NO | 2mm | 8×8×1(iron) | φ3×2M/3-wires |
F3L-08KS02-N2 R2M | NPN.NC | ||||
F3L-08KS02-P R2M | PNP.NO | ||||
F3L-08KS02-P2 R2M | PNP.NC | ||||
standard shell/non-shield/double sensing range | F3L-08KN04-N R2M | NPN.NO | 4mm | 12×12×1(iron) | φ3×2M/3-wires |
F3L-08KN04-N2 R2M | NPN.NC | ||||
F3L-08KN04-P R2M | PNP.NO | ||||
F3L-08KN04-P2 R2M | PNP.NC | ||||
short shell/shield/double sensing range | F3L-08ES02-N R2M | NPN.NO | 2mm | 8×8×1(iron) | φ3×2M/3-wires |
F3L-08ES02-N2 R2M | NPN.NC | ||||
F3L-08ES02-P R2M | PNP.NO | ||||
F3L-08ES02-P2 R2M | PNP.NC | ||||
short shell/non-shield/double sensing range | F3L-08EN04-N R2M | NPN.NO | 4mm | 12×12×1(iron) | φ3×2M/3-wires |
F3L-08EN04-N2 R2M | NPN.NC | ||||
F3L-08EN04-P R2M | PNP.NO | ||||
F3L-08EN04-P2 R2M | PNP.NC |
Response frequency | 1000Hz/800Hz |
Hysteresis | 10%≤sensing distance |
Operating voltage | DC:12~24VDC±10%/ can customize 5V |
Current consumption | DC:≤8mA No—Load |
Load current | DC:24V 150mA Max |
Leakage current | DC:≤0.01mA no-Load |
Residual votage | DC:≤1.5VDC No-load |
Operating temperature | -20°C~+70°C |
Material | PBTand SUS304 |
Wiring method | 2M/3-wires |
Protection degree | IP67 |
