24V DC M12 Industiral Automation Sensors Switch 3 Wires AC NO Inductive Switch
Product Details:
| Place of Origin: | China |
| Brand Name: | F&C |
| Certification: | CE RoHS ISO |
| Model Number: | F3C-12KN04-P R2M |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable |
| Packaging Details: | Standard Export Package |
| Delivery Time: | 10days after deposit |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 10000Pcs Per Month |
|
Detail Information |
|||
| Output Method: | PNP NO | Mounting Method: | Flush |
|---|---|---|---|
| Detection Distance: | 2mm | Standard Detection Object: | 12*12*1(Iron) |
| Response Frequency: | 600Hz | Short-circuit Protection: | Yes |
| Operating Temperature: | -25~70℃ | Material: | PBT And SUS304 |
| High Light: | industrial proximity sensor,industrial optical sensor |
||
Product Description
24V DC M12 Industiral Automation Sensors Switch 3 Wires AC NO Inductive Switch
24V DC M12 Industiral Automation Sensors Switch 3 Wires AC NO Inductive Switch

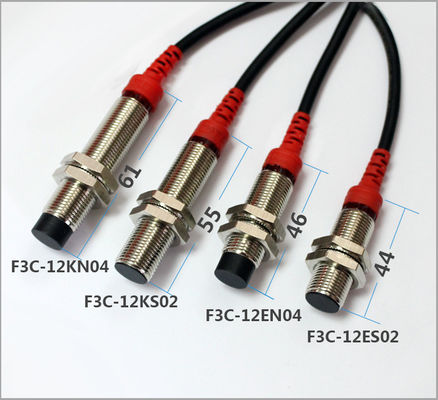

Product details
|
standard shell shield |
F3C-12KS02-N R2M | NPN.NO | 2mm | 12×12×1(iron) | φ3×2M/3-wires |
| F3C-12KS02-N2 R2M | NPN.NC | ||||
| F3C-12KS02-P R2M | PNP.NO | ||||
| F3C-12KS02-P2 R2M | PNP.NC | ||||
|
standard shell non-shield |
F3C-12KN04-N R2M | NPN.NO | 4mm | 12×12×1(iron) | φ3×2M/3-wires |
| F3C-12KN04-N2 R2M | NPN.NC | ||||
| F3C-12KN04-P R2M | PNP.NO | ||||
| F3C-12KN04-P2 R2M | PNP.NC | ||||
|
short shell shield |
F3C-12ES02-N R2M | NPN.NO | 2mm | 12×12×1(iron) | φ3×2M/3-wires |
| F3C-12ES02-N2 R2M | NPN.NC | ||||
| F3C-12ES02-P R2M | PNP.NO | ||||
| F3C-12ES02-P2 R2M | PNP.NC | ||||
|
short shell non-shield |
F3C-12EN04-N R2M | NPN.NO | 4mm | 12×12×1(iron) | φ3×2M/3-wires |
| F3C-12EN04-N2 R2M | NPN.NC | ||||
| F3C-12EN04-P R2M | PNP.NO | ||||
| F3C-12EN04-P2 R2M | PNP.NC | ||||
|
standard shell shield double sensing range |
F3L-12KS04-N R2M | NPN.NO | 4mm | 12×12×1(iron) | φ3×2M/3-wires |
| F3L-12KS04-N2 R2M | NPN.NC | ||||
| F3L-12KS04-P R2M | PNP.NO | ||||
| F3L-12KS04-P2 R2M | PNP.NC | ||||
|
standard shell non-shield double sensing range |
F3L-12KN08-N R2M | NPN.NO | 8mm | 24×24×1(iron) | φ3×2M/3-wires |
| F3L-12KN08-N2 R2M | NPN.NC | ||||
| F3L-12KN08-P R2M | PNP.NO | ||||
| F3L-12KN08-P2 R2M | PNP.NC | ||||
|
short shell shield double sensing range |
F3L-12ES04-N R2M | NPN.NO | 4mm | 12×12×1(iron) | φ3×2M/3-wires |
| F3L-12ES04-N2 R2M | NPN.NC | ||||
| F3L-12ES04-P R2M | PNP.NO | ||||
| F3L-12ES04-P2 R2M | PNP.NC | ||||
|
short shell non-shield double sensing range |
F3L-12EN08-N R2M | NPN.NO | 8mm | 24×24×1(iron) | φ3×2M/3-wires |
| F3L-12EN08-N2 R2M | NPN.NC | ||||
| F3L-12EN08-P R2M | PNP.NO | ||||
| F3L-12EN08-P2 R2M | PNP.NC |
| Response frequency | 800Hz |
| Hysteresis | 10%≤sensing distance |
| Operating voltage | DC:12~24VDC±10%/ can customize 5V |
| Current consumption | DC:≤8mA No—Load |
| Load current | DC:24V 150mA Max |
| Leakage current | DC:≤0.01mA no-Load |
| Residual votage | DC:≤1.5VDC No-load |
| Operating temperature | -20°C~+70°C |
| Material | PBTand SUS304 |
| Wiring method | 2M/3-wires |
| Protection degree | IP67 |
Before-sales Services
1.24-hours online service;is available here. Once you have any questions, just contact us and our professional staff will reply very quickly. Email, Skype, Whatsapp or Online Message are acceptable.
2.Market information;also will be provided. Since we are an experienced manufacturer of sensor, the market information about sensors will be offered as long as you need.
On-purchase Services:
1.The information of sensors that we provided is fully presented including product details, pictures, delivery and so on;
2.All your problems or worries will be solved quickly by our sales. It is worth noting that the;prices of our; sensors;are quite;negotiable. We have large discount for big quantity.
After-sales Services
1. The;warranty periodis 18 months.
2. If we send the wrong parts;to you, free replacement will be available.
3. As for the installation of the parts, if you have any questions, do not hesitate to contact us at any time.
Q:Are you sensors manufacturer?
A:Yes,over 30 years' experience in sensors field.We can make more profit for you.
our product has CE certificate.
Q:Can I get samples for test?
A:Yes,we;support free test samples and shipping cost at your side.
Q: What's your leadtime?
A:Generally speaking,we have stocks for 110 kind of different models and can ship at any time. If we don't have stock,our leadtime is 5-7 working days. We will pull in the production schedule if your demand is urgently.
Q: What's your payment term?
A:You can pay us by T/T, Paypal, Westunion.
Q:How do you arrange the shipment ?
