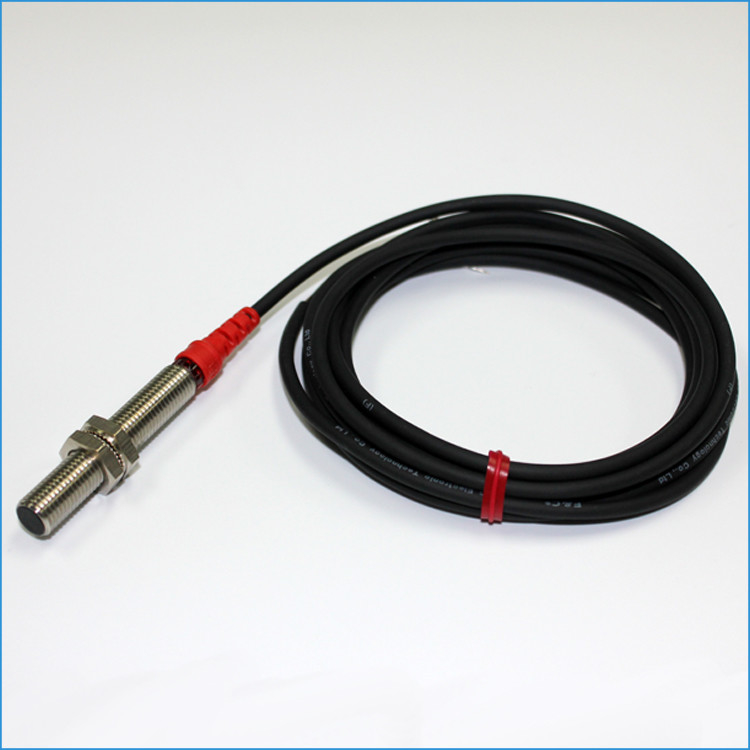

12-24VDC 2 Wires Flush M8 Inductive Sensor 2mm Metal Detection
Product Details:
| Place of Origin: | China |
| Brand Name: | F&C |
| Certification: | CE, RoHS |
| Model Number: | F3L-08KS02-B R2M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5Pcs |
|---|---|
| Price: | 5-10USD |
| Packaging Details: | Standard export Package |
| Delivery Time: | 10days after deposit |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 20000Pcs Per Month |
|
Detail Information |
|||
| Output Method: | NPN NO | Mounting Method: | Flush |
|---|---|---|---|
| Detection Distance: | 2mm | Standard Detection Object: | 8*8*1(Iron) |
| Response Frequency: | 1000Hz | Short-circuit Protection: | Yes |
| Operating Temperature: | -25~70℃ | Material: | PBT And SUS304 |
Product Description
12-24VDC 2 Wires Flush M8 Inductive Sensor 2mm Metal Detection
12-24VDC 2 Wires Flush M8 Inductive Sensor 2mm Metal Detection
Proximit Sensors the most common solution for non-contact detection. And the inductive type is the widely used proximity switches, which is through the electromagnetic waves to detect the metal abject near the sensor detection surface. In application , this is a very simple technology to detect 1”~2”metal object . F&C Sensing Technology offer different series proximity sensor , that included inductive, photoelectrical, capacitive and etc.
Here is the specification for 2 Wires Flush M8 Inductive Sensor 2mm Metal Detection
| Model | F3L-08KS02-B R2M |
| Output Method | Normal Open |
| Mounting Method | Flush |
| Detection Distance | 2mm |
| Hysteresis | Less than 10% of sensing distance |
| Standard Sensing Object | 8*8*1mm(Iron) |
| Operating Voltage | 12-24 VDC |
| Current Consumption | Less than 8mA (No Load) |
| Load current | 100mA Max at 24 VDC |
| Residual Voltage | Less than 1.5VDC (No Load) |
| Leakage Current | Less than 0.01mA |
| Protection Degree | IP67 |
| Operating Temperature | -25℃-70℃ (No Icing) |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| Material | PBT and Nickelled copper |
| Wire Method | 2m cable |

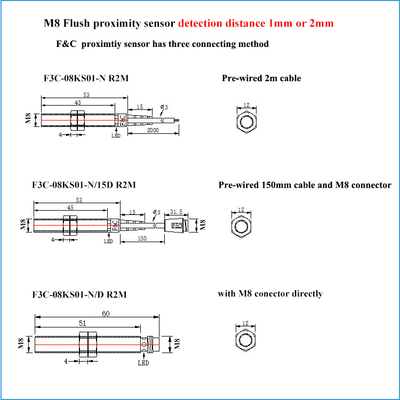

We also have non-flush and short body series M8 Inductive sensor shown as following:
Product details
| standard shell/shield | F3C-08KS01-N R2M | NPN.NO | 1mm | 8×8×1(iron) | φ3×2M/3-wires |
| F3C-08KS01-N2 R2M | NPN.NC | ||||
| F3C-08KS01-P R2M | PNP.NO | ||||
| F3C-08KS01-P2 R2M | PNP.NC | ||||
| standard shell/non-shield | F3C-08KN02-N R2M | NPN.NO | 2mm | 8×8×1(iron) | φ3×2M/3-wires |
| F3C-08KN02-N2 R2M | NPN.NC | ||||
| F3C-08KN02-P R2M | PNP.NO | ||||
| F3C-08KN02-P2 R2M | PNP.NC | ||||
| short shell/shield | F3C-08ES01-N R2M | NPN.NO | 1mm | 8×8×1(iron) | φ3×2M/3-wires |
| F3C-08ES01-N2 R2M | NPN.NC | ||||
| F3C-08ES01-P R2M | PNP.NO | ||||
| F3C-08ES01-P2 R2M | PNP.NC | ||||
| short shell/non-shield | F3C-08EN02-N R2M | NPN.NO | 2mm | 8×8×1(iron) | φ3×2M/3-wires |
| F3C-08EN02-N2 R2M | NPN.NC | ||||
| F3C-08EN02-P R2M | PNP.NO | ||||
| F3C-08EN02-P2 R2M | PNP.NC | ||||
| standard shell/shield/double sensing range | F3L-08KS02-N R2M | NPN.NO | 2mm | 8×8×1(iron) | φ3×2M/3-wires |
| F3L-08KS02-N2 R2M | NPN.NC | ||||
| F3L-08KS02-P R2M | PNP.NO | ||||
| F3L-08KS02-P2 R2M | PNP.NC | ||||
| standard shell/non-shield/double sensing range | F3L-08KN04-N R2M | NPN.NO | 4mm | 12×12×1(iron) | φ3×2M/3-wires |
| F3L-08KN04-N2 R2M | NPN.NC | ||||
| F3L-08KN04-P R2M | PNP.NO | ||||
| F3L-08KN04-P2 R2M | PNP.NC | ||||
| short shell/shield/double sensing range | F3L-08ES02-N R2M | NPN.NO | 2mm | 8×8×1(iron) | φ3×2M/3-wires |
| F3L-08ES02-N2 R2M | NPN.NC | ||||
| F3L-08ES02-P R2M | PNP.NO | ||||
| F3L-08ES02-P2 R2M | PNP.NC | ||||
| short shell/non-shield/double sensing range | F3L-08EN04-N R2M | NPN.NO | 4mm | 12×12×1(iron) | φ3×2M/3-wires |
| F3L-08EN04-N2 R2M | NPN.NC | ||||
| F3L-08EN04-P R2M | PNP.NO | ||||
| F3L-08EN04-P2 R2M | PNP.NC |
| Response frequency | 1000Hz/800Hz |
| Hysteresis | 10%≤sensing distance |
| Operating voltage | DC:12~24VDC±10%/ can customize 5V |
| Current consumption | DC:≤8mA No—Load |
| Load current | DC:24V 150mA Max |
| Leakage current | DC:≤0.01mA no-Load |
| Residual votage | DC:≤1.5VDC No-load |
| Operating temperature | -20°C~+70°C |
| Material | PBTand SUS304 |
| Wiring method | 2M/3-wires |
| Protection degree | IP67 |
