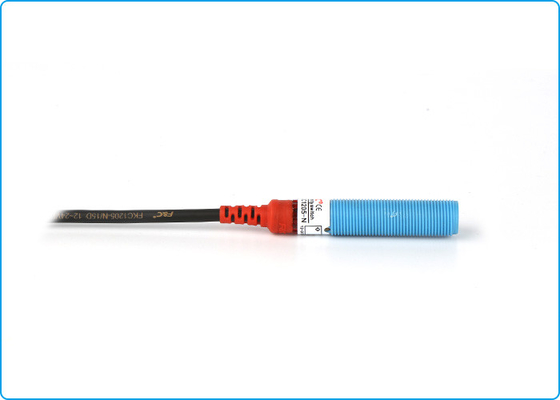

    24V M12 3D Printer Capacitive Sensors NPN NO 3 Wires Liquid Level Sensor

    Product Details:

    Place of Origin: China
    Brand Name: F&C
    Certification: CE, RoHS
    Model Number: FKC1205-N

    Payment & Shipping Terms:

    Minimum Order Quantity: negotiable
    Price: negotiable
    Packaging Details: Standard Export Package
    Delivery Time: 10 days after deposit
    Payment Terms: Western Union, T/T
    Supply Ability: 10000 Pcs Per Month
    Get Best Price Contact Now

    Detail Information

    Output Method: NPN NO Detection Distance: 5mm
    Operating Voltage: 12~24VDC Standard Detection Object: 15*15*1(non-metal)
    Response Frequency: 600HZ Operating Temperature: -25~70℃
    Waterproof Grade: IP67 Material: ABS
    Usage: Position Sensor

    Product Description

    24V M12 3D Printer Capacitive Sensors NPN NO 3 Wires Liquid Level Sensor

    24V M12 3D Printer Capacitive Sensors NPN NO 3 Wires Liquid Level Sensor

    M12 Capacitive sensor are suitable for Non-metal detection. such as water level, and glass detection etc.



    It can be also used on the 3D printer due to high repeatability.





    Just let us know your application, we can provide the automation solution for you.



    Specification

    Model

    FKC1205-N(NPN NO)

    FKC1205-N2(NPN NC)

    FKC1205-P(PNP NO)

    FKC1205-P2(PNP NC)

    Detection Distances 5mm
    Standard Sensing Object Non-Metal
    Response Frequency 600HZ
    Hysteresis Less than 10% of sensing distance
    Detection Method NPN NO
    Operating Voltage 12-24 VDC
    Protection Degree IP66
    Operating Temperature -25℃-70℃ (No Icing)
    Reverse Polarity Protection Yes
    Short Circuit Protection Yes
    Material ABS
    Wire Method 2 m cable

    24V M12 3D Capacitive Sensors NPN NO 3 Wires Liquid Level Sensor

    24V M12 3D Capacitive Sensors NPN NO 3 Wires Liquid Level Sensor









    24V M12 3D Capacitive Sensors NPN NO 3 Wires Liquid Level Sensor
